Descriere
For analogue or ISDN connection

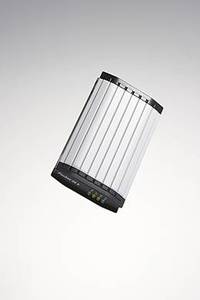

The compact and robust Pocket-Modem is the remote station for the office when doing remote maintenance via telephone, e.g. with the ACCON-MPI/PROFIBUS-Modem and the ACCON-MPI-Modem.
Perfect fields of application
As remote station for the office when doing remote maintenance via telephone.
You have the choice
The Pocket-Modem can be supplied in two models differing in the modem type:
You can choose between the analogue modem and the model as IDSN adaptor.
Technical data
| Pocket-Modem 56k INT | Pocket-Modem ISDN | |
| Telephone connection | Connection cable for TAE bushing | ISDN connection cable |
| Connection to the PC | RS-232 with 9-pin SUB-D bushing, via supplied cable | RS-232 with 9-pin SUB-D bushing, via supplied cable |
| Supported ISDN protocol | – | DSS1 (Euro-ISDN) |
| Dimensions (W x H x D) in mm | 71 x 22 x 128 | 71 x 22 x 128 |
| Protection type | IP 20 | IP 20 |
| Supply voltage | 9 to 10 VDC via supplied PSU | 5 VDC via supplied PSU |
| Power consumption | 2 W | 0.5 W |
| Operating temperature | 0 °C to 55 °C | 0 °C to 55 °C |
| Allowed relative humidity | 0 % to 95 % | 0 % to 95 % |
