Descriere
Find the best alternative for a Siemens Field PG M6 by using our in house built solution for engineers and technicians.

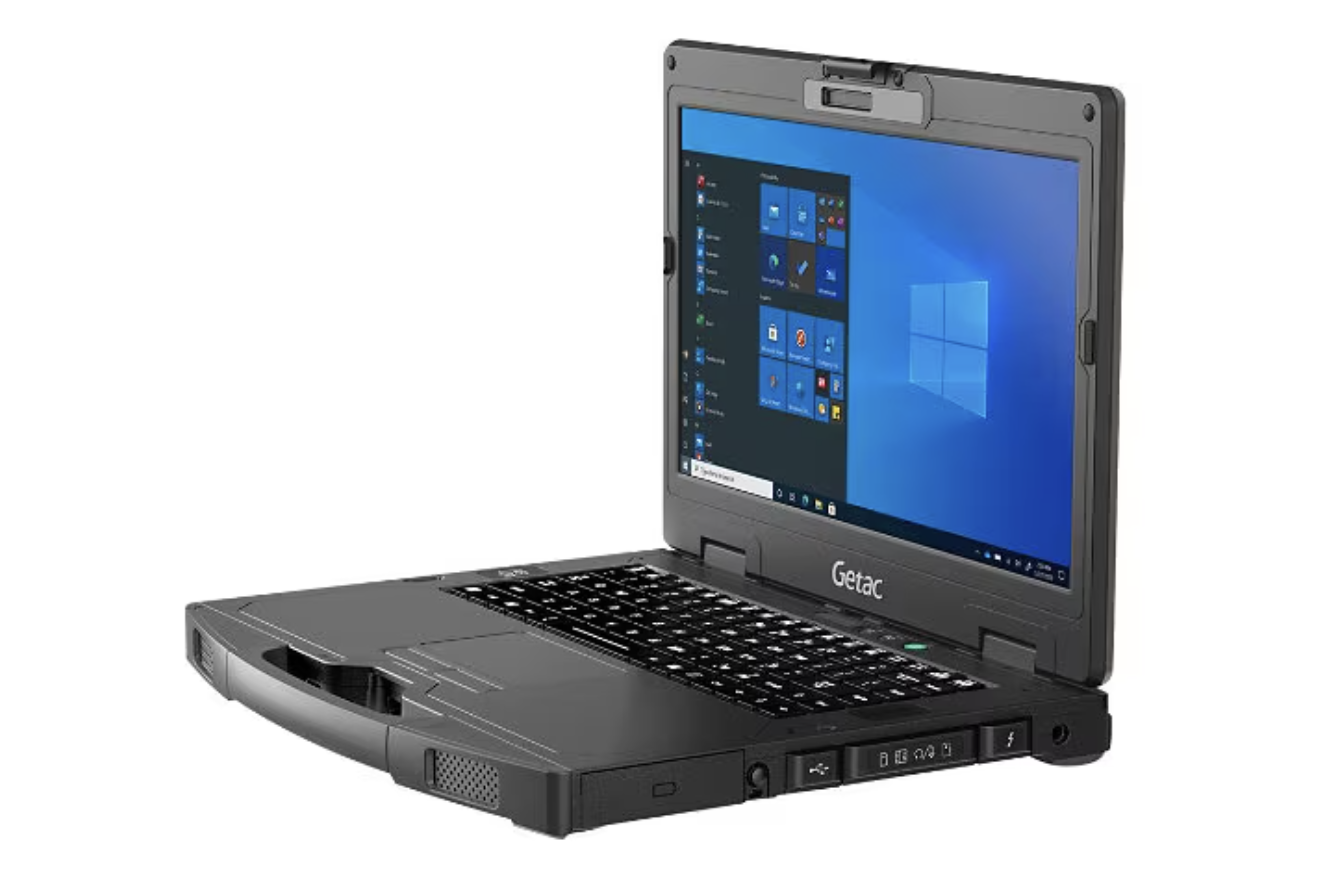

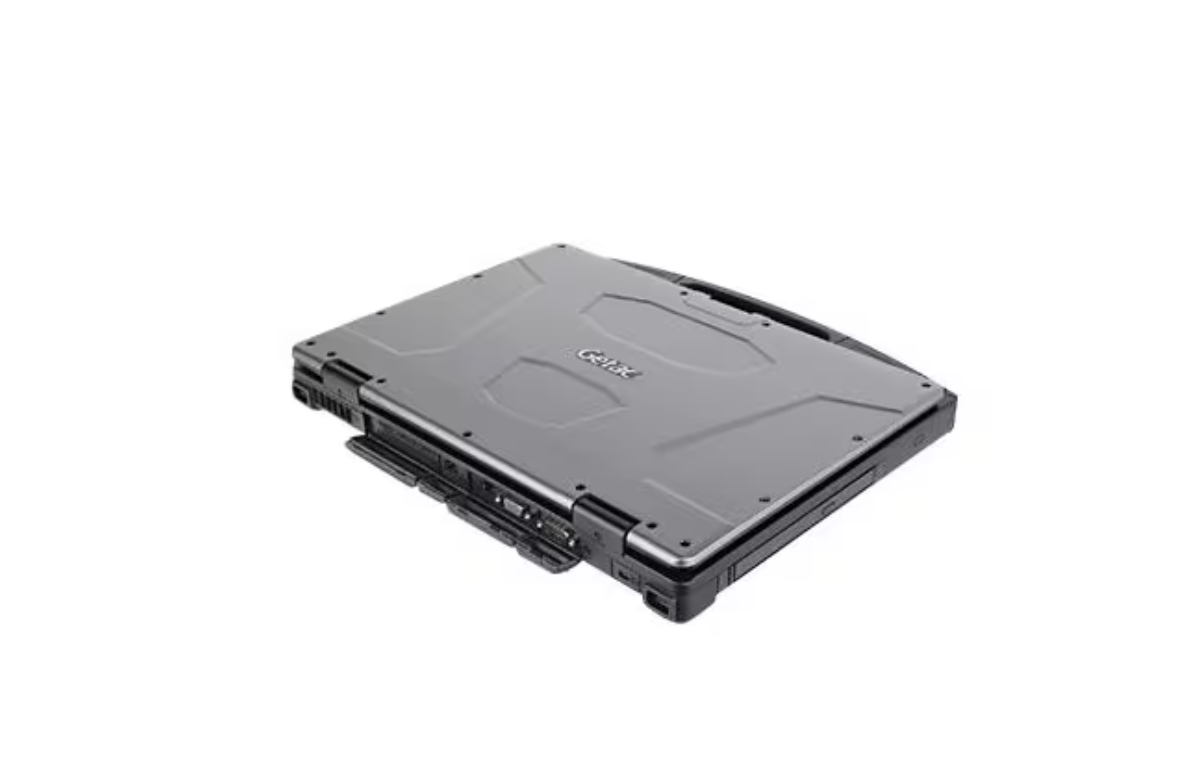

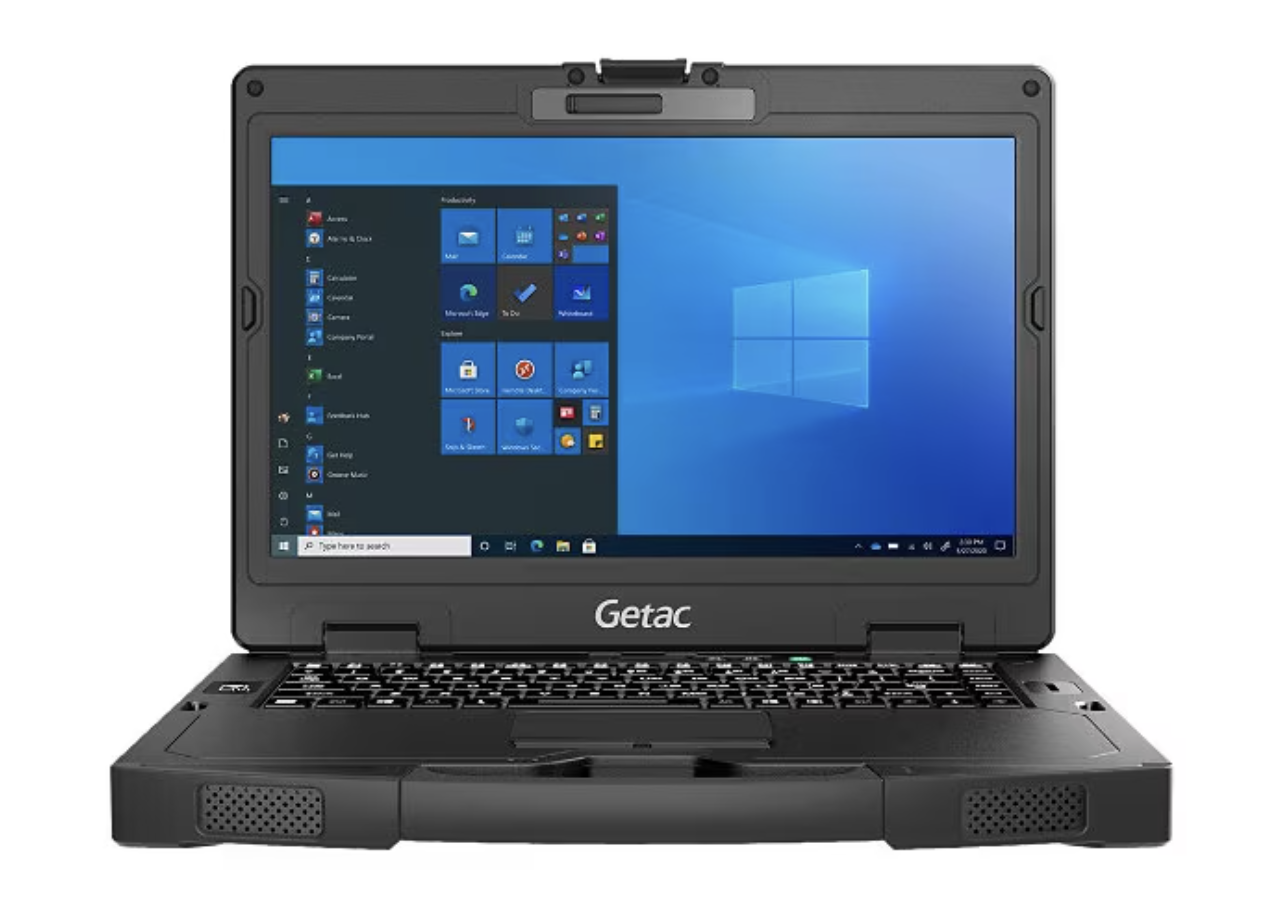

Here are a few reasons to purchase this rugged notebook developed by our skilled engineers :
– fully customizable hardware options including CPU i5 or i7 , RAM 16 to 64 GB, Storage 512GB to 2 TB Nvme
– includes Siemens PLC adapter so you can connect to any PLC series 200 , 300 , 400 , that supports MPI
– includes Gigabit ethernet for industrial connections allowing you to connect and program any other Siemens PLC series 1200, 1500
– allows to connect any adapters via USB and USB type C
– best in class rugged platform , used by US military
– bright display compared to original Field PG that allows use outside in bright light
– touchscreen display
– optional 14 inch or 15.6 inch display
– other software can be installed, different versions of TIA Portal simultaneously including VMWARE for older S5 PLCs
Model: Field PG S7 PN 6ES7718-XXX
Max Turbo Speed : 4.2 GHZ
Processor Brand: Intel
Processor Generation: 11
Processor Main Features: Intel Smart Cache, Intel Turbo Boost Technology
Processor Number: i7
Memory: 16 GB DDR4 ( upgradable to 64 GB DDR4 )
Screen size: 14 inch with touchscreen
Screen resolution: FullHD 1920×1080 pixels
Rugged: Fully Rugged Laptop with Military Spec shock absortion , dustproof, waterproof.
Camera: yes FullHD
HDMI Ports: 1
Interfaces: 2 x USB 3.2 Gen 2, Dock, HDMI, Headphone/microphone combo jack, LAN, Thunderbolt 4, USB 2.0
Siemens PC Adapter USB A2 6GK1571-0BA00-0AA0 ( for Siemens PLC 200-300-400-1200-1500 )
Siemens PC Adapter USB A2 6GK1571-0BA00-0AA0 ( for Siemens PLC 200-300-400-1200-1500 )
USB 2.0 Ports Quantity: 1
USB 3.0 Ports: 2
Data Link Protocols: 802.11ax, Bluetooth 5.2, Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wired Protocol: Ethernet
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Wireless NIC: Intel Wi-Fi 6 AX 201
Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip
Input Device Type: Membrane keyboard, Stylus, Touchpad
Max Operating Temperature: 145.4 degree Fahrenheit
Min Operating Temperature: -20.2 degree Fahrenheit
Operating Humidity: 95% (non-condensing)
Rugged: Yes
FeaturesAnti-shock hard drive, Drop-resistant, Vibration-resistant, Windows Hello
Input Device Features: Splash-resistant keyboard
Keyboard Backlight: Yes
Keyboard Localization: US
Keys Layout: QWERTY
Packaged Quantity:1
Security Slot Type: Kensington security slot
Operating System: Windows 11 Pro 64-bit Edition

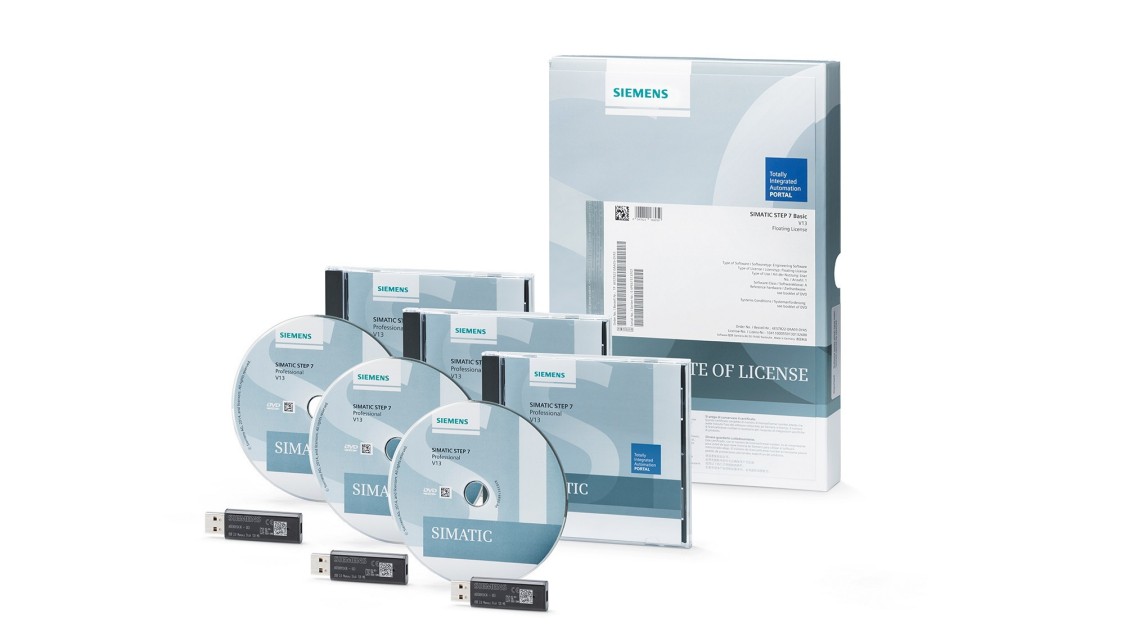

Software: TIA Portal version 19 with STEP 7 , WinCC Advanced, SimoCode, PLCSIM, Safety Advanced
( on customer request before order software versions and modules can be changed).
Battery Capacity: 6900 mAH
Included Accessories: Power adapter
Compliant Standards: IP53, MIL-STD-810H
Limited Warranty: 3-year warranty
