Descriere

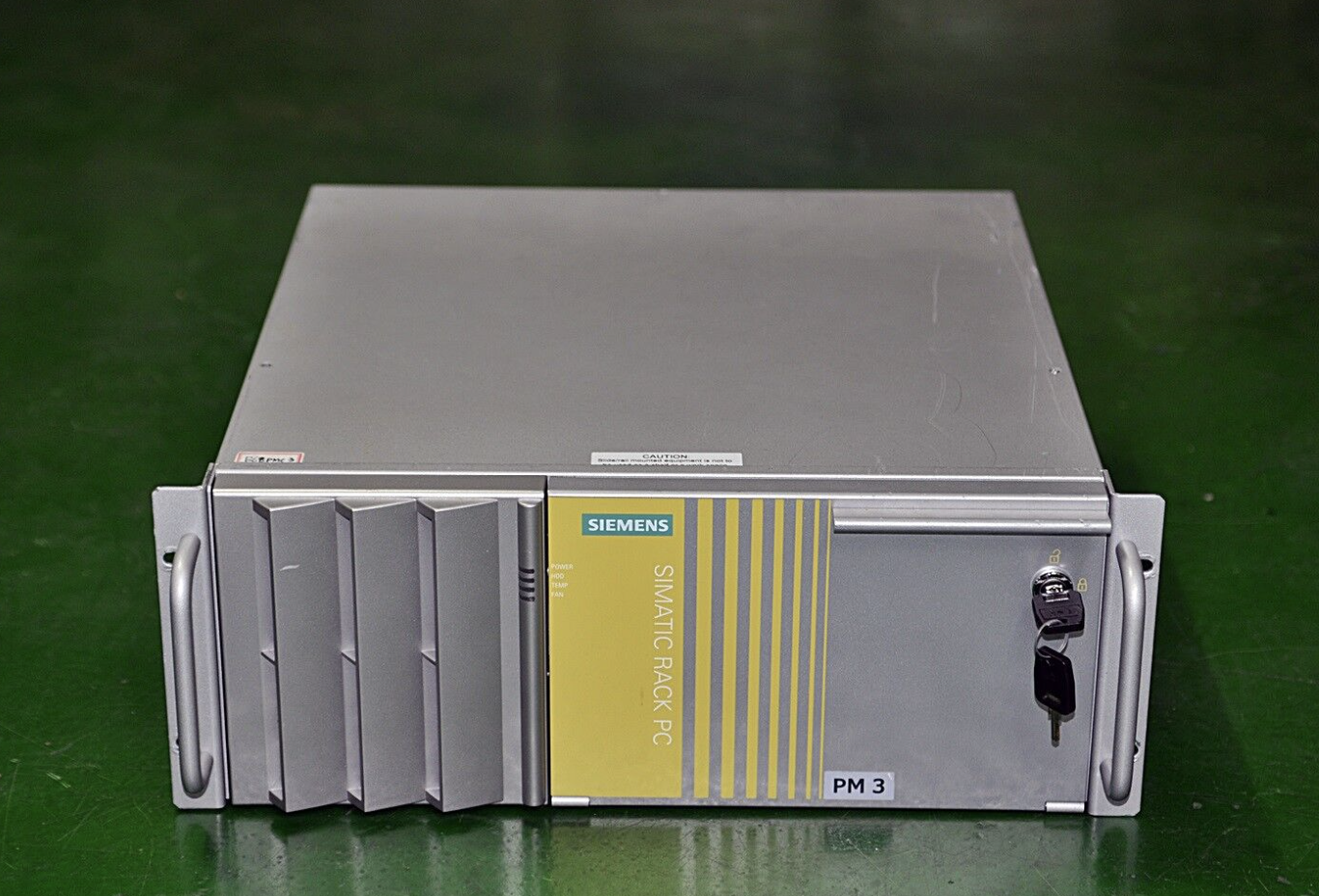

SIEMENS IPC 547C SIMATIC IPC547C
| Design | 19″ rack, 4U |
| Mounting | Prepared for telescopic rails, for horizontal and vertical installation, 19″ mounting bracket can be removed from the outside; tower kit (optional) for conversion to tower PC |
| Processor | • Intel Core 2 Quad Q9400 (2.66 GHz, 1333 MHz FSB, 6 MB L2 cache, EM64T, VT) • Intel Core 2 Duo E8400 (3.0 GHz, 1333 MHz FSB, 6 MB L2 cache, EM64T, VT) • Intel Pentium Dual Core E5300 (2.6 GHz, 800 MHz FSB, 2 MB L2 cache) |
| Main memory | From 1 GB DDR2 800 SDRAM (dual-channel support); 4 x DIMM; upgradable to 16 GB 7) |
| Free expansion slots | 4 x PCI, 1 x PCIe x1, 1 x PCIe x8 (1 lane), 1 x PCIe x16 (Gen. 2.0) (all long) |
| Graphics | • Onboard: Intel GMA4500 graphics controller integrated in chipset; dynamic video memory up to 256 MB; up to 2048 x 1536 pixels / 16 bit / 75 Hz • Graphics card: NVIDIA Quadro NVS 290 (dualhead: 2 x VGA or 2x DVI-D), PCIe x16; 256 MB; up to 2048 x 1536 pixels / 32 bit / 60 Hz (optional) |
| Power supply / temporary Voltage interruption | AC: 100-240 V, 50-60 Hz / max. 16 ms; AC, redundant: 100-240 V, 50-60 Hz / max. 16 ms (optional) available soon |
| Optical drives | DVD-ROM or DVD ± R/RW |
| Diskette drive | 1.44 MB |
| Slots | 6 (internal: 2 x 3.5″, front: 3 x 5.25″, 1 x 3.5″) or 6 (internal: 2 x 3.5″, front: 3 x low-profile removable frames, 1 x 3.5″) |
