Descriere
Rugged Specs

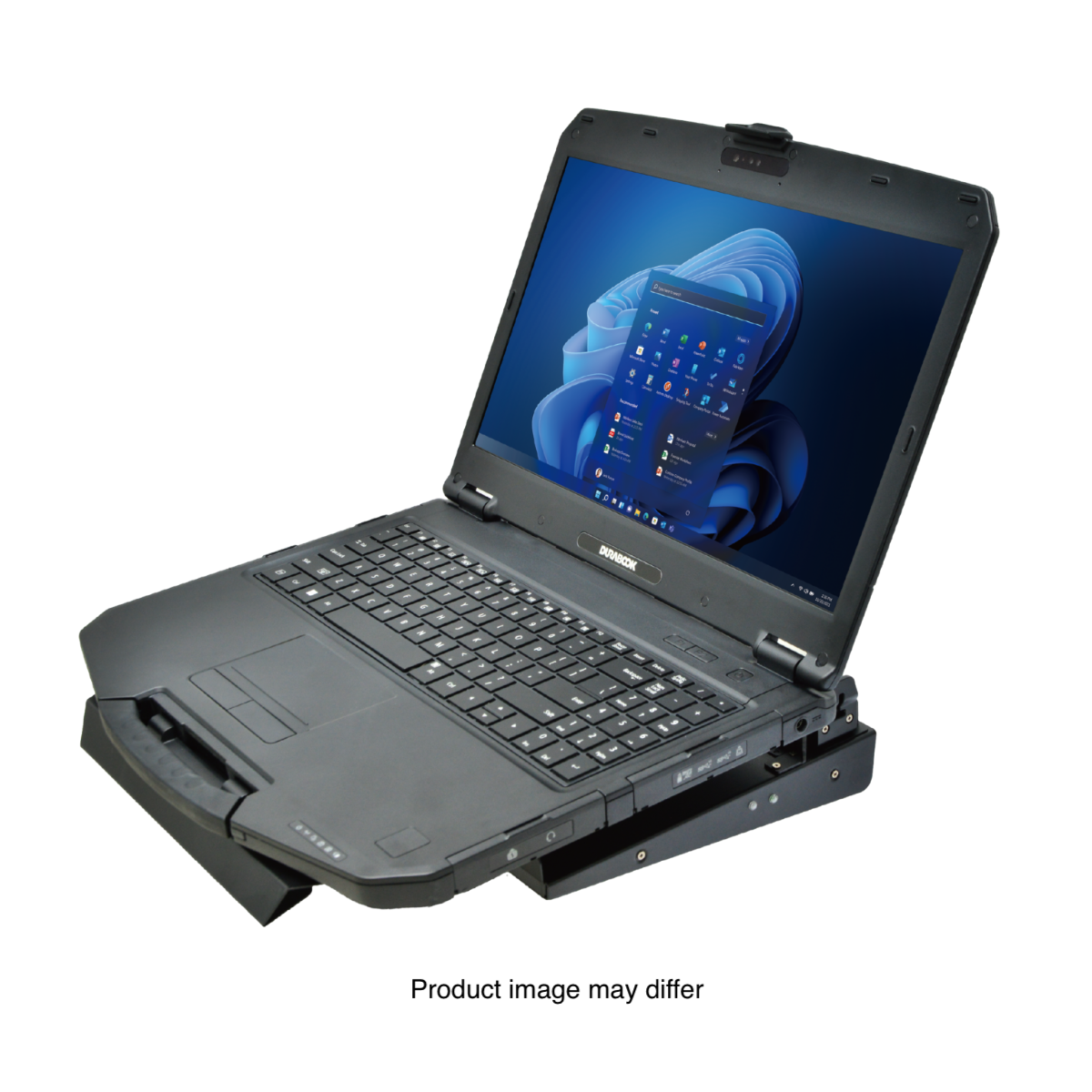

| MIL-STD-810H certified (Drop, Shock, Vibration, Dust, Altitude, High/Low Temperature, Humidity) 4′ drop 26 faces IP 53 certified (optional) Magnesium alloy chassis Port covers Removable quick-release battery Optional sunlight readable display Optional swappable battery technology 3 years warranty international Designed for PLC and HMI programming and troubleshooting, includes TIA Portal V21 and Step 7 Professional 2025 |
Tech Specs
| Display | 15.6” FHD (1920 x1080) Optional 1000 nits DynaVue® sunlight readable display |
| Operating System | Windows® 11 Pro 64-bit |
| Processors | Intel® Core™ i7-1255U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores) Intel® Core™ i5-1235U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores) |
| Memory | 2 slots 8GB up to 64GB (4800 MHz DDR5) |
| Storage | 512GB NVMe PCIe SSD Optional 512GB/1TB/2TB PCIe SSD Optional 2nd storage M.2 SATA or NVMe PCIe SSD1 Optional 3rd storage M.2 SATA SSD1 |
| Graphics | Intel® Iris® Xe Graphics6 Intel® UHD Graphics Optional NVIDIA® RTX A5001,7 |
| Camera | Optional integrated 2.0MP web-cam Optional 5.0MP IR camera for Windows Hello1 |
| Audio | Integrated microphone Intel® High Definition Audio Compliant Integrated speaker x 2 Keyboard volume and mute controls |
| Media Bay (One Option Only) |
Optional DVD super multi Optional 3rd SSD1 Optional ExpressCard 541,3 |
| Expansion Box | Optional discrete VGA1 Optional 2nd RJ45 x 1 + 2nd RS232 x 11,3 |
| I/O Ports | Thunderbolt 4 x 1 USB 3.2 Gen2 (type A) x 2 USB 3.2 Gen2 (type C) x 1 (support DP) Audio in/out (combo jack) x 1 microSD card (microSDXC) x 1 10/100/1000 Ethernet (RJ45) x 1 VGA port (D-sub,15-pin) x 1 HDMI port (type A) x 1 Serial port (RS232, RS422 and RS485 : D-sub,9-pin) x 1 Nano SIM card x 1 DC-In jack x 1 Optional docking connector (41-pin Pogo) x 1 Optional smart card reader x 1 Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Keyboard & Input | 2 user-definable keys (P1/P2) Standard membrane keyboard with numeric keypad and optional LED backlight |
| Wireless & Communications | Integrated 10/100/1000 Ethernet Intel® Wi-Fi 6E AX211 (802.11ax) Bluetooth® V5.3 Optional GPS and 4G LTE multi-carrier mobile broadband Optional 5G1 Optional RF antenna pass-through for GPS, WWAN, and WLAN |
| Security | Intel® vPro™ Technology Secured-core PC1 TPM 2.0 NIST BIOS compliant Stealth mode Kensington lock Optional smart card reader Optional Windows Hello1 Optional fingerprint scanner Optional night vision mode2 Optional LF/HF-RFID (NFC) reader |
| Power | AC adapter: 100-240V, 50Hz-60Hz, 90W Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA Main battery Li-Ion, 7.4V, 7600mAh, 12 hours4 Optional bridge battery: 5 minutes swap time5 |
| Dimension & Weight | 375 mm (L) x 273 mm (W) x 29.5 mm (H) 2.6 kg |
| Software installed | TIA Portal V.20 with Step 7 Professional license floating for 1 PC ( can be changed to V 18 – v19 – v20 – v21 )
|
